Horizontal V Grooving Machine

Horizontal V Grooving Machine
  • RAS series Horizontal V Groover Machine base and beam are designed with frame structure. The working table is made of 60mm Q345 low-alloy high-strength structural steel. The frame is made of Q235 steel plate. The machine tool has good overall rigidity and durability.
  • The bed is tempered with natural gas to eliminate welding stress and reduce equipment deformation. Sandblasting guarantees excellent paint finish.
  • RAS Horizontal V Groover Machine adopts precision copper gear and helical rack drive, supplemented by Taiwan Shangyin roller heavy-duty linear guide. The moving speed can be adjusted by frequency conversion, and the cutting process is smooth and efficient. The first-level transmission of the motor is driven by a V-belt. Due to the tensile force of the V-belt, the impact force during emergency stop and rapid return is reduced, which ensures the flexible operation of the equipment and extends the service life of the equipment.
  • The RAS Horizontal V Groover Machine uses a SFSR Silent Ball Screw and a QH Silent Rail to ensure high accuracy.
  • The RAS Horizontal V Groover Machine is fixed by Hydraulic clamping system, which can fast groove and guarantee strong clamping. Hydraulic clamping prevents plate crushing.

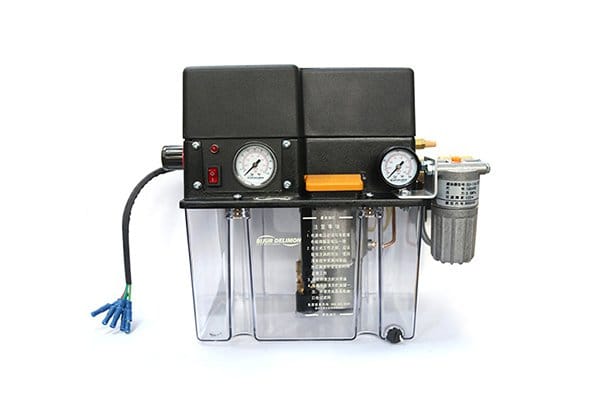

  • The RAS Horizontal V Groover Machine uses four cutters to machine “V” grooves, so the cutting amount is evenly distributed, reducing deformation of the machined part. And the optional micro cooling system can prolong the service life of the tool and reduce the production cost.
  • The RAS Horizontal V Groover Machine can be machined both longitudinally and laterally, and has a process to achieve the “front and back” processing function of the plate.
  • With this V Groover Machine, you can do it with only the input keyboard and processing program. According to different operators and materials, the knob can be used to adjust the processing speed, which is convenient for the operators.
  • The status of the process in processing can be understood through the display. Sensors are used to ensure the safety of operators.
  • The alarm message appears on the display when the equipment is abnormal, which is easy to repair.
    When using the V Groover Machine to process, only labor is required for the placement and removal of the workpiece, so labor can be saved.
  • The RAS Horizontal V Groover Machine table has a self-healing function. During use, customers can plan the table according to their own requirements to ensure processing accuracy.

STANDARD COMPONENTS

  • CNC system – BECHKOFF , Germany
  • Servo motor – Panasonic , Japan
  • Hight-Precise Ball Screw-HINWIN ,Taiwan
  • Hight-Precise Linear Guide Rail-HINWIN ,Taiwan
  • Gear-rack drive-YYC,Taiwan
  • Touching Ball Bearing -NSK-Japan
  • Grooving Cutter-KORLOY,Korea
  • Electrical Element-AIRTAC-Taiwan
  • Air Cylinder-AIRTAC-Taiwan
  • Power Cable-IGUS,Germany

OPTIONAL

Blade with different material for cutting mild steel, brass, aluminum etc.

Fuselage and arross beam

Horizontal.Both the fuselage and arross beam of Horizontal V-Grooving machine adopts frame structure design,workbench is made of 60mm low alloy and high strength steel,rather than frame is Q345 steel,not only rugged but also durable.

Horizontal V Grooving Machine for sheet metal
V Groving mahine fuselage

The fuselage

The bed of the gantry grooving machine adopts natural gas tempering to eliminate welding stress and reduce equipment deformation.Through sandblasting treatment, to ensure a good paint effect.

Control system

  • 15-inch CNC touch control display
  • Acceleration and deceleration
  • response time: 0.5US
  • With a fallback function
  • PLC interrupt function: scan time is
  • fixed to 10ms
  • Avoid crashing
  • You only need to use the keyboard and the processor to enter data to complete the slot.
  • According to the different materials, you can use the knob to adjust the processing speed, easy to operate.
  • Processing can be monitored through the display.When an exception occurs on the v-grooving machine, an alert is displayed on the screen and is easy to repair.
v grooving machine for krrass
cnc v grooving machine for sheet meatl

Knife rest & workbench

  • The tool rest moving device adopts SFSR static ball screw and QR ball screw, with high precision.
  • Surface wear can automatically repair the surface, improve the accuracy of the machine.

Head & blade

  • The grooving machine uses four knives to process the “V” groove, so the cutting quantity is evenly distributed to reduce the deformation of the workpiece.
  • The blade is imported from Korea to ensure the life of the blade.
    White steel knife grooves common steel plate and copper plate aluminum plate.
  • Alloy blade grooves stainless steel.
v grooving kinf

Cylinder & tubing

  • Sealing Ring :NOK-Japan
  • Tube connector:EMB-Germany

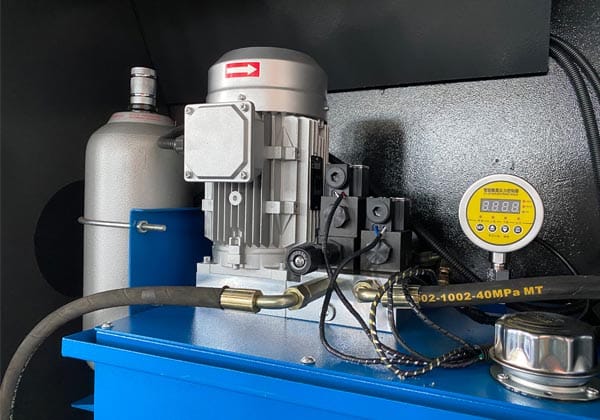

Hydraulic System

Hydraulic System

  • Hydraulic Valve Group : YUKEN-Japan
  • Hydraulic Pump:YUKEN-Japan

Other elements

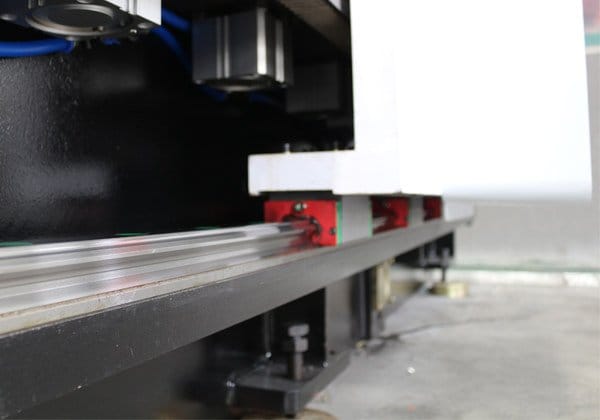

Taiwan HIWIN Linear Guide

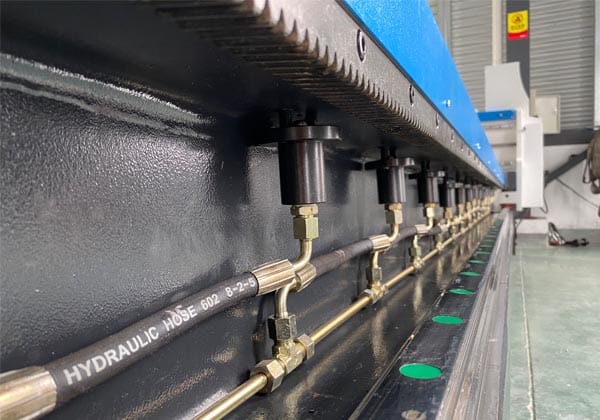

YYC Gear Race

Taiwan YYC Gear Race

Press Foot

Pneumalock

Technical Parameters

ModelRAS-3212RAS-3215RAS-4012RAS-4015
Machining CapacityPlateMaterialSTS-304 & Q235STS-304 & Q235STS-304 & Q235STS-304 & Q235
Length3200mm3200mm4000mm4000mm
Width1250mm1500mm1250mm1500mm
Thickness0.6mm-6mm(Metal sheet Flatness<3mm)0.6mm-6mm(Metal sheet Flatness<3mm)0.6mm-6mm(Metal sheet Flatness<3mm)0.6mm-6mm(Metal sheet Flatness<3mm)
Minimum Edge8mm8mm8mm8mm
CNC SpecificsControl Type4-axes CNC Control(Y1、Y2、Z)4-axes CNC Control(Y1、Y2、Z)4-axes CNC Control(Y1、Y2、Z)4-axes CNC Control(Y1、Y2、Z)
 Display10-inch High Definition Color Display10-inch High Definition Color Display10-inch High Definition Color Display10-inch High Definition Color Display
 Memory Capacity20-groups, 112 lines/group(Expandable by adding SD Card )20-groups, 112 lines/group(Expandable by adding SD Card )20-groups, 112 lines/group(Expandable by adding SD Card )20-groups, 112 lines/group(Expandable by adding SD Card )
Transmission WayBall Screw/Linear Guide Rail/Gear and RackBall Screw/Linear Guide Rail/Gear and RackBall Screw/Linear Guide Rail/Gear and RackBall Screw/Linear Guide Rail/Gear and Rack
Machining Speed Crossbeam Forward-cutting(X-axis)60m/min(Adjustable)60m/min(Adjustable)60m/min(Adjustable)60m/min(Adjustable)
 Return Stroke(X-axis)60m/min60m/min60m/min60m/min
Cutter Holders(Y1&Y2-axes)20m/min20m/min20m/min20m/min
Cutter Holder(Z-axis)Up and Down20m/min20m/min20m/min20m/min
Machining PrecisionCrossbeam(Y-axis) Precision0.01mm0.01mm0.01mm0.01mm
Crossbeam(Y-axis) Max.Travel1250mm1250mm1250mm1250mm
Cutter Holder(Z-axis) Precision0.01mm0.01mm0.01mm0.01mm
Cutter Holder(Z-axis) Max. Travel50mm50mm50mm50mm
Driving WayCrossbeam(X-axis)5.5 KW Servo Motor5.5 KW Servo Motor5.5 KW Servo Motor5.5 KW Servo Motor
Z-axis1 KW Servo Motor1 KW Servo Motor1 KW Servo Motor1 KW Servo Motor
Cutter Holders(Y1&Y2-axes)1 KW Servo Motor1 KW Servo Motor1 KW Servo Motor1 KW Servo Motor
Clamping MechanismPneumatic System0.3-0.6Mpa0.3-0.6Mpa0.3-0.6Mpa0.3-0.6Mpa
Outline Dimension Length5200mm5200mm6000mm6000mm
Width2380mm2680mm2380mm2680mm
 Height1580mm1580mm1580mm1580mm
 Weight7200KG83000KG8000KG111000kg
Worktable Flatness±0.02mm/m±0.02mm/m±0.02mm/m±0.02mm/m

Function Effenct

A selection of architectural applications for V-Grooving and folding

Hotel and restaurant detailing

V-Grooved and folded stainless steel creates the appearance of solid brass bar detail.

Exterior cladding detail

These decorative exterior panels are created using V-Grooved and folded PVD coloured stainless steel in Bronze. The edge-folds give depth and the look of a solid material.

Elevator interiors

This elevator cab interior is created from panels with V-Grooved and folded edges.

Wall cladding systems

Cladding panels are V-Grooved and folded to create a depth to wall panels. For close butting-up the V-Grooving and folding allows for a visually seamless effect.

Elevator entry areas

Button panels, cladding panels and trims are created from V-Grooved and folded metals.
