Plasma Cutting Machine

PLASMA CUTTING MACHINE

Features

  • The machine is desktop gantry structure with double-side drive. X & Y axes track are precise cylindrical linear guide rails, precise gear and rack drive, runs stably.
  • Machine frame adopts the whole welding and annealing treatment, main frame is made by medium-sized steel pipe through welding; rail base plates are made through the planer precision processing, high strength, good precision and no deformation.
  • Crossbeam, side panels and all movable parts are made by aluminum alloy through fine casing and milling, with features of high strength and small inertia, ensuring the high strength and avoiding the cutting positioning instability caused by high inertia.
  • Adopting HP105 portable arc-pressure height regulator which can automatically regulates the height between cutter and plate to ensure the cutting quality. Scientific structure can effectively avoid collision between cutting head and steel plates owning to reaction rate cannot matches with that of cutting head.
  • Specimen closed environmental bottom groove and dust treatment system timely discharge dust and provides a healthy working environment for workers.

Standard Configuration

  • Shanghai Fangling F2300A CNC system
  • X-axis Y-axis using linear track, Z-axis using ball screw
  • HIWIN ball screw and polished rod, control accuracy 0.05mm
  • Movable operation system
  • FASTCAM/SMARTCUT CNC cutting software
  • Japanese Panasonic P80 cutting head
  • X-axis with double motor drive, Y-axis single motor drive
  • France Schneider electrics
  • Safety standard(2006/42/EC)

Optional

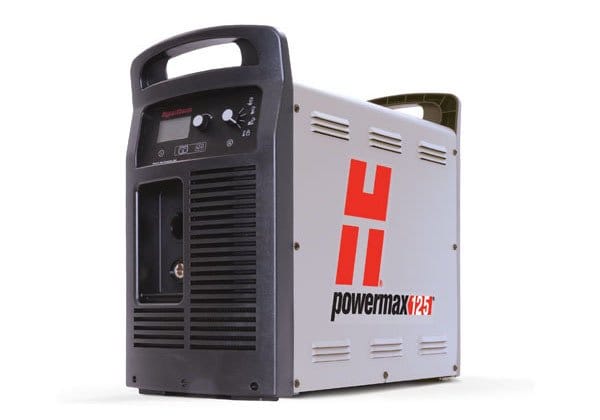

  • Using Hypertherm power supply, Hypertherm cutting head
  • X axis, Y axis use servo motor

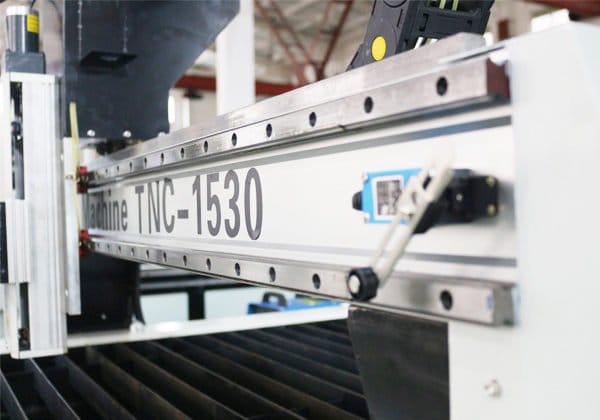

Plasma Cutting Machine Y axis

  • Y axis adopt double linear guide rail, gear and rack transmission is more stable.
  • Cast aluminum beam, light, low inertia and high precision

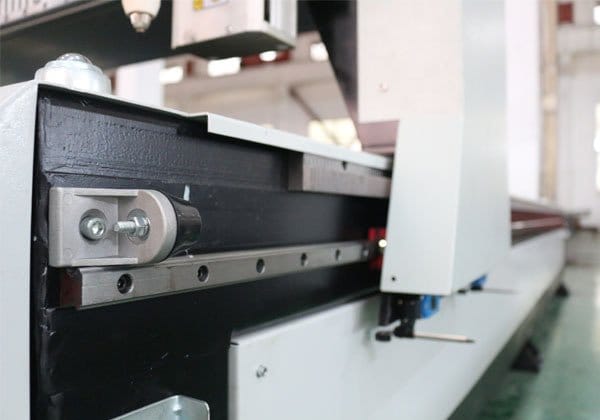

Plasma Cutting Machine X Axis

X axis adopts double straight line & pinion and rack transmission, running more stable

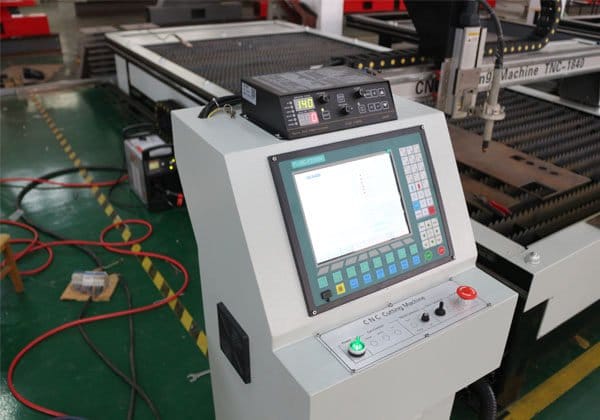

Plasma Cutting Machine Cutting system and Height controller

  • Shanghai Jiaotong university F2300A NC controller
  • F1620 portable arc pressure adjustor is adopted to automatically adjust the cutting height along with the uneven steel plate to ensure the cutting quality.

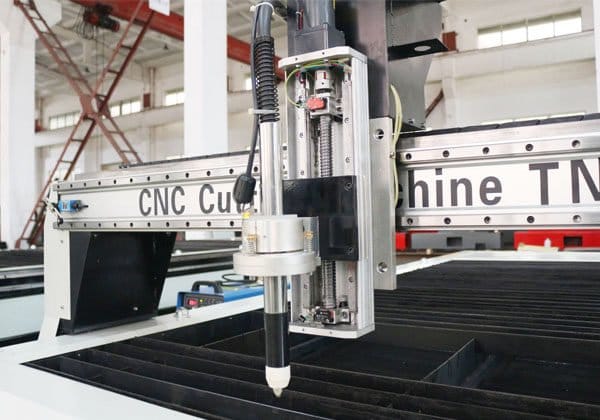

Plasma Cutting Machine Cutting Head

  • Hyperthern plasma cutting head
  • The Z axis adopts high precision linear module, with higher precision and automatic height adjustment

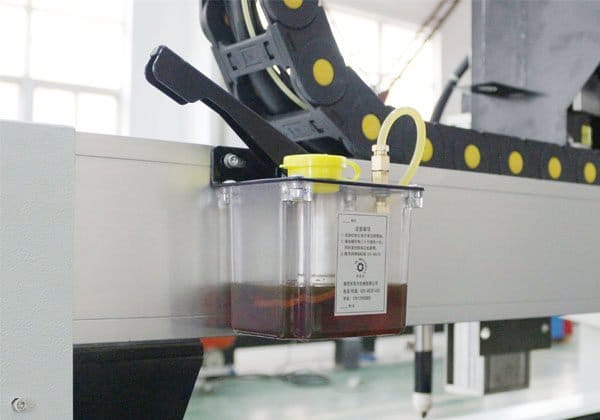

Automatic lubrication

Centralized lubrication system

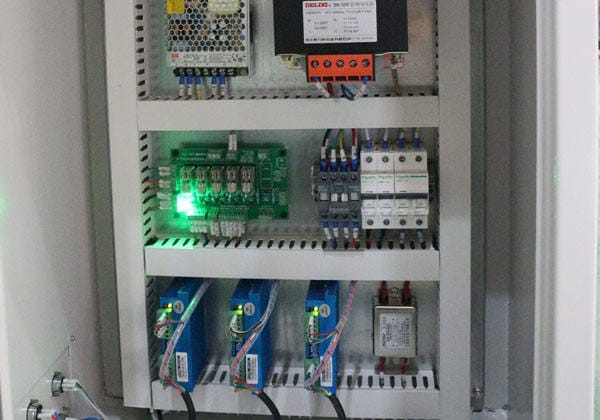

Electrical appliances

Schneider Electric

Bed Frame

Closed environment-friendly bottom channel (water filling) and dust treatment system can timely and effectively discharge dust to ensure the staff health

Technical Parameters

Model/SpecificationTNC-1325TNC-1530TNC-1840TNC-2040
Input PowerAC 220V±10%  50-60Hz  1.0KWAC 220V±10%  50-60Hz  1.0KWAC 220V±10%  50-60Hz  1.0KWAC 220V±10%  50-60Hz  1.0KW
Cutting Way Plasma cutting, Flame Cutting ( According to the need of Customer ) Plasma cutting, Flame Cutting ( According to the need of Customer ) Plasma cutting, Flame Cutting ( According to the need of Customer ) Plasma cutting, Flame Cutting ( According to the need of Customer )
CNC Width(mm)1900210023002500
CNC Length (mm)3100( Can be lengthened if customer require )3600( Can be lengthened if customer require )3600( Can be lengthened if customer require )3600( Can be lengthened if customer require )
Effective Cutting Range (mm)1300*25001500*30001800*40002000*4000
Cutting Torch Lifting Height (mm)120120120120
Cutting Torch Quantity  One set of plasma / Flame  One set of plasma / Flame  One set of plasma / Flame  One set of plasma / Flame
CNC Cutting Torch Quantity1111
Cutting Thickess  (mm)Flame 6-150 mm, subject to plasma powerFlame 6-150 mm, subject to plasma powerFlame 6-150 mm, subject to plasma powerFlame 6-150 mm, subject to plasma power
Idle Stroke Speed 0—5000mm/min 0—5000mm/min 0—5000mm/min 0—5000mm/min
Cutting Speed 20—4000mm/min 20—4000mm/min 20—4000mm/min 20—4000mm/min
DriveRack drive: bilateral driveRack drive: bilateral driveRack drive: bilateral driveRack drive: bilateral drive
CNC SystemShanghai Fangling, 10 inch IPC ( Industrial Personal Computer ) displayShanghai Fangling, 10 inch IPC ( Industrial Personal Computer ) displayShanghai Fangling, 10 inch IPC ( Industrial Personal Computer ) displayShanghai Fangling, 10 inch IPC ( Industrial Personal Computer ) display
Other AccessoriesLifting pipeline towing chain, one set of toolsLifting pipeline towing chain, one set of toolsLifting pipeline towing chain, one set of toolsLifting pipeline towing chain, one set of tools
Automatic Hight Adjustment1111
Nesting SoftwareStandard configuration:a set of FASTCAM expert edition/SMARTCUT softwareStandard configuration:a set of FASTCAM expert edition/SMARTCUT softwareStandard configuration:a set of FASTCAM expert edition/SMARTCUT softwareStandard configuration:a set of FASTCAM expert edition/SMARTCUT software
Guide Rail Base, Cutting RackProvided by factoryProvided by factoryProvided by factoryProvided by factory
