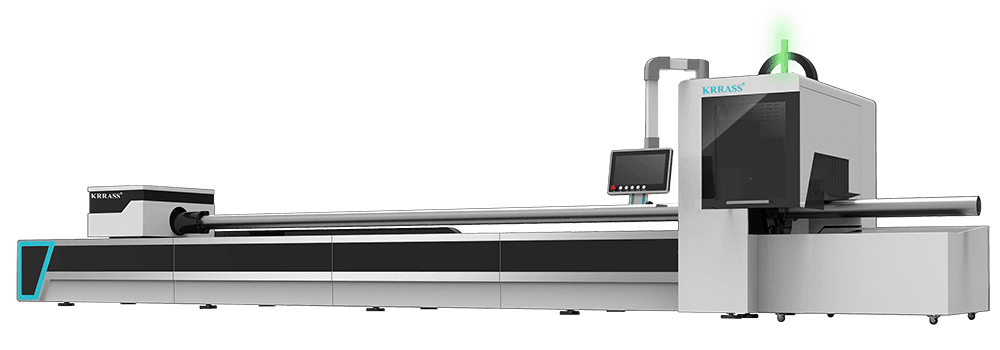

Tube Fiber Laser Cutting Machine

RAS-6000

tube fiber laser cutting machine

TECHNICAL PARAMETERS

1070-1080mm
Laser wavelength

1000w-3000w
Laser power

60m/min
Max.moving speed

0.5G
Max. acc. speed

±0.03mm/m
Positioning accuracy

±0.03mm
Reposition accuracy

4850kg
Whole machine weight

9000*2100*2400mm
Machine dimensions

Cypcut FSCUT3000S Tube Control System

High-speed transmission, higer cutting accuracy; independent innovation and research and development, stable and flexible operation;

Clamp Design

It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

Easy to Operate

It employs a wireless controller, with free control clamp pressure for easy control and operation, which can reduce pipe deformation.

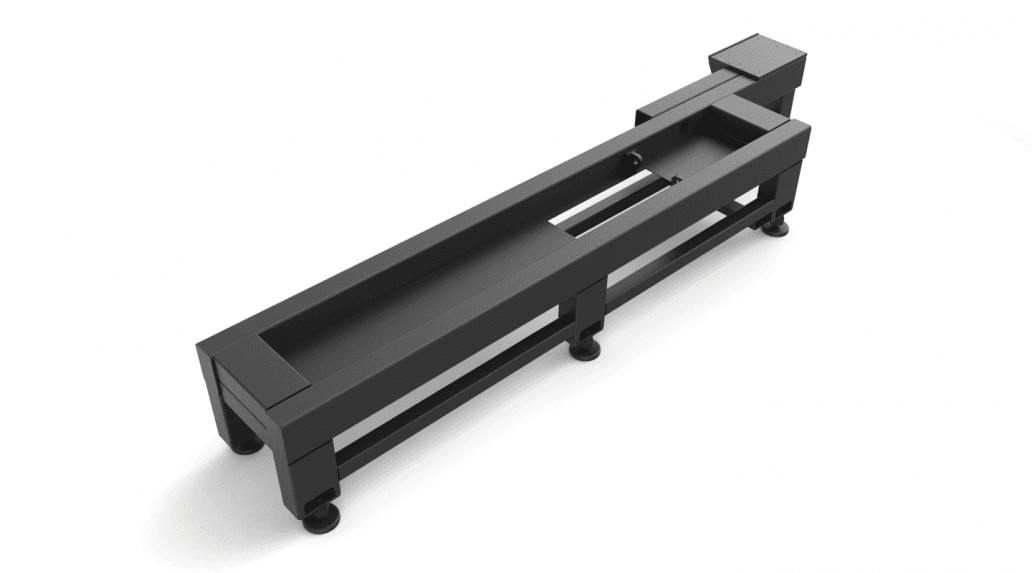

Machine Body

Adopts national standard square tube, 600 ℃ high-temperature heat treatment, 12 meters gantry milling with finishing, 24 hours cooling inside oven ensuring the long-term use of the machine without deform hence the accuracy of the machine is guaranteed.

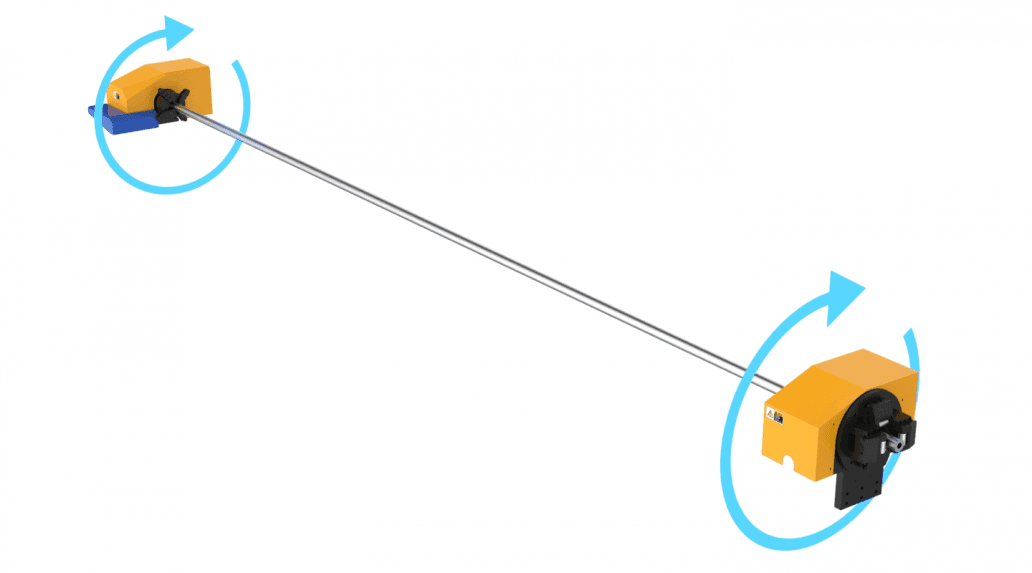

“DOUBLE-W” ROTATION CUTTING

“DOUBLE-W” ROTATION CUTTING 6-METER-LONG PIPES IS NO LONGER LIMITED TO THE SLENDERNESS RATIO OF 60:1

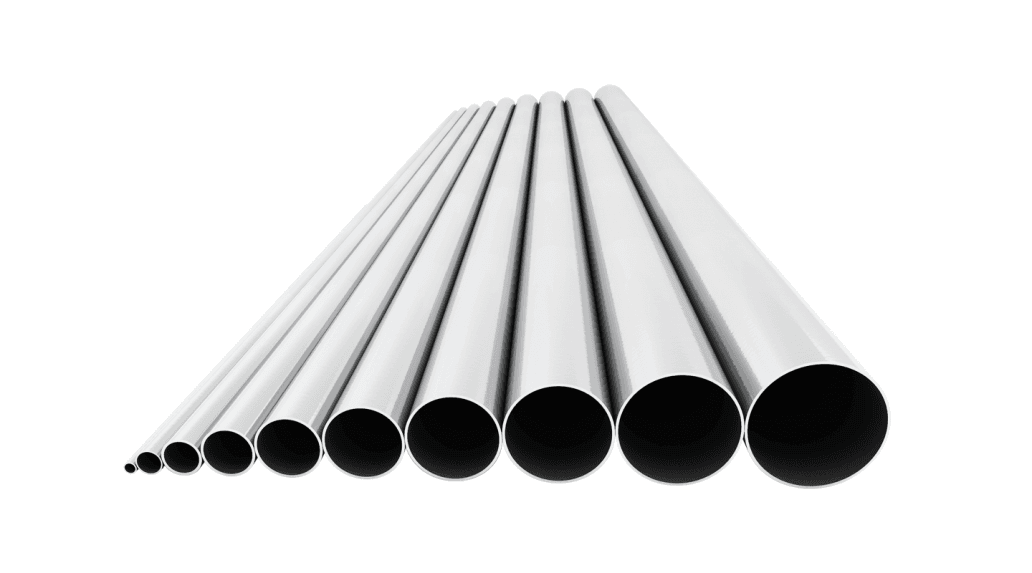

Tube Cutting Capacity

used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube □ 20 * 20- □150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.

Raytools laser head

We adopt the cutting head produced by ourselves, the core optic of which is from ophir. The optic has high stability.

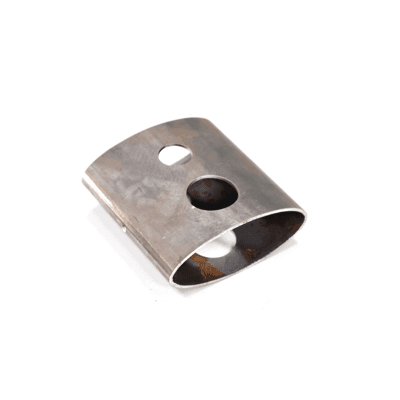

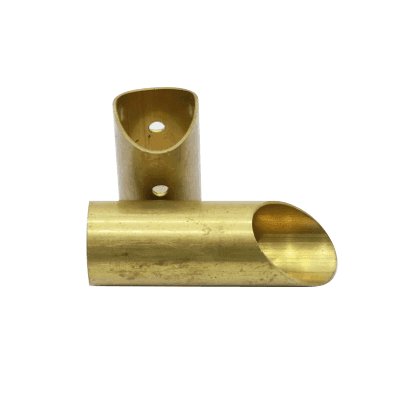

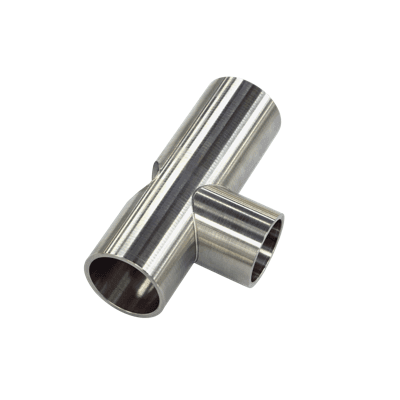

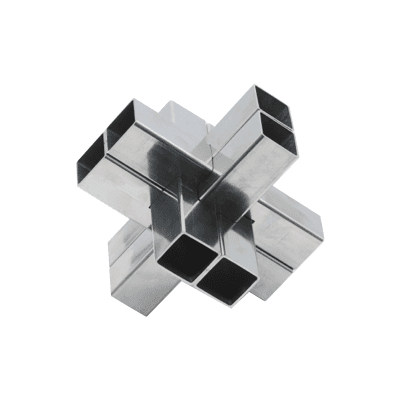

Sample
